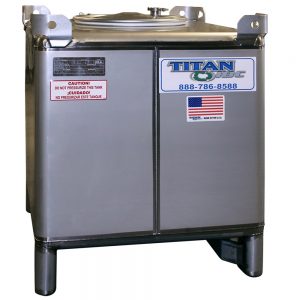

Titan IBC Wine & Beverage Storage tanks include features to meet today’s industry standards while providing options to meet your specific needs. Titan IBC’s superior containers, crafted with 304 stainless steel as standard and 316 stainless steel, are custom designed for shipping, handling, blending, distilling, and storage of wines, juices, beverages, flavorings, alcohols and distilled products.
Formed legs, 8″ tall to allow for sanitary valve installation, and for pallet jack & forklift handling.
One piece formed top & bottom with 2″ radius for ease of cleaning.
2″ Sanitary elbow, clamp, gasket, and cap on tank outlet.
White Food grade lid gasket, snap on style, for ease of cleaning.
Stainless steel data/serial number tag fully welded to tank.
Constructed with heavy duty 10 gauge 304 Stainless Steel 2b finish.
One piece formed sloped bottom for virtual 100% discharge.
Heavy duty, one piece formed, full length valve protection guard.
Chemical resistant safety decals.
Snag-proof formed legs allowing 3-way forklift entry.
Heavy duty, 1/4″ thick, combination lifting lugs/leg positioners for stacking tanks.
Removable 22″ dia. Cone Top Lid to enhance degassing during fermentation with 2″ sanitary weld ferrule, clamp, gasket & cap; Bolted plated steel lid clamp ring to hold lid in place.
316SS, Butterfly, Sanitary Tri-Clamp Connections, 3 Position Lockable Handle, IN LINE CLOSED
VENT, 2", POLY/Stainless, Press/Vac, 3# PSI/ .5# Vac, Viton Gasket, Gits, Fully Open at 5# PSI
VENT, 2", POLY, White, Press/Vac, 5# PSI/.5# Vac, Viton O-Rings

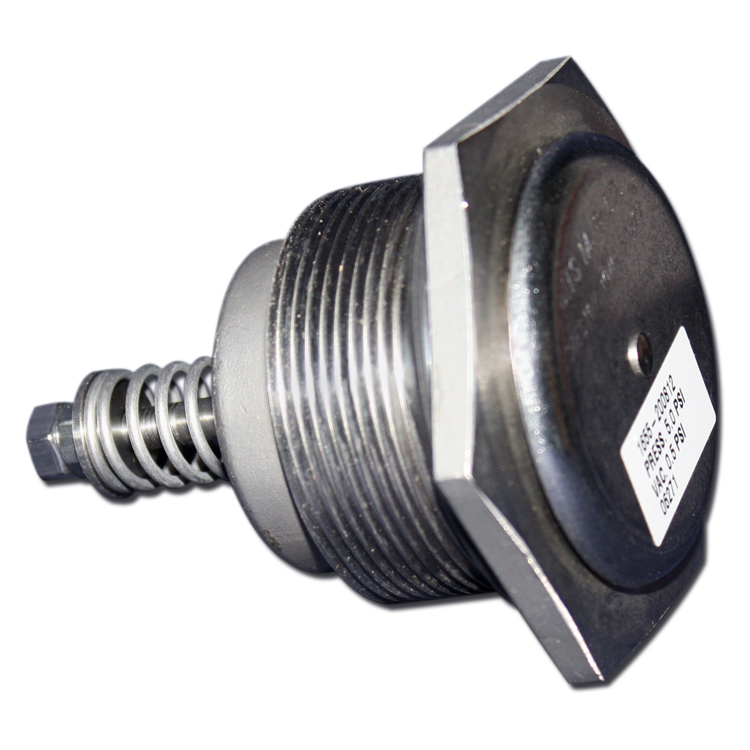

VENT, 2", 316SS, Press/Vac, 3# PSI/.5# Vac, Viton Gasket, Low Profile, High Vacuum Relief
GASKET, 22-1/2" Drum Cover, EPDM, White, FDA Compliant, Full Wrap

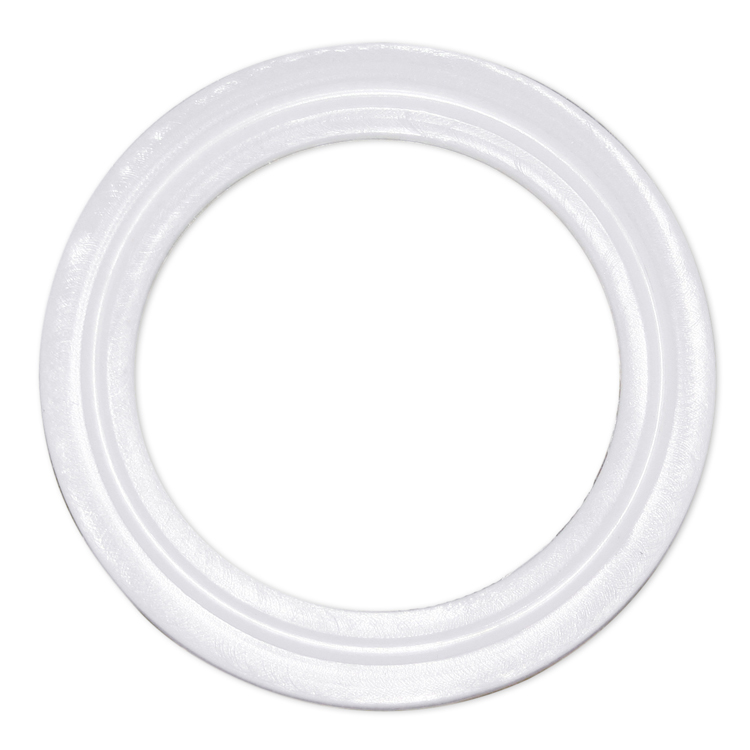

GASKET, 2", FDA Silicone, Sanitary Tri-Clamp
2" Heavy Duty Single Pin Sanitary Tri-Clamp, 304SS. Maximum operating pressure 450 PSI at 70° F.
CLAMP RING, 22-1/2", Stainless Steel, Leverlock, NON-UN
CAP, 2", 304SS, Sanitary Tri-Clamp, Solid
304SS, Butterfly, Sanitary Tri-Clamp Connections, 3 Position Lockable Handle, IN LINE CLOSED
BOLT, 5/8″ -11×5″ grade 2 hex head, Tap, plated steel
CLAMP RING, 22-1/2″, plated steel, w/ horizontal lugs
